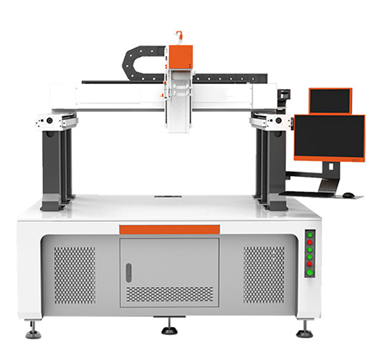

BK-LSW-3000W Laser Spot Welding Machine for Prismatic Pack
Product ID : BK-LSW-3000W
Product Description
Gantry type laser welding equipment
Technical Introduction
Ⅰ.Introduction to Workbench 3D

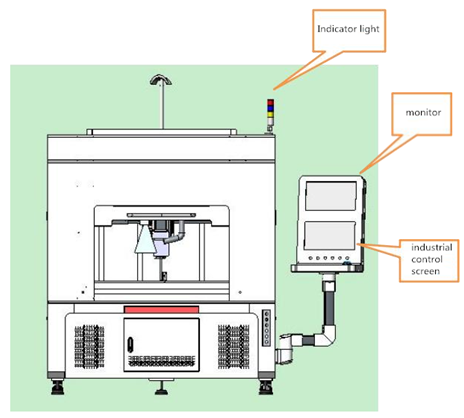

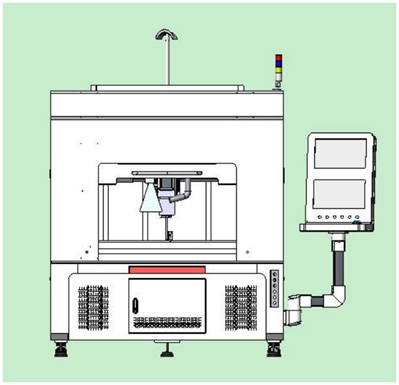

1.1 Overall effect diagram

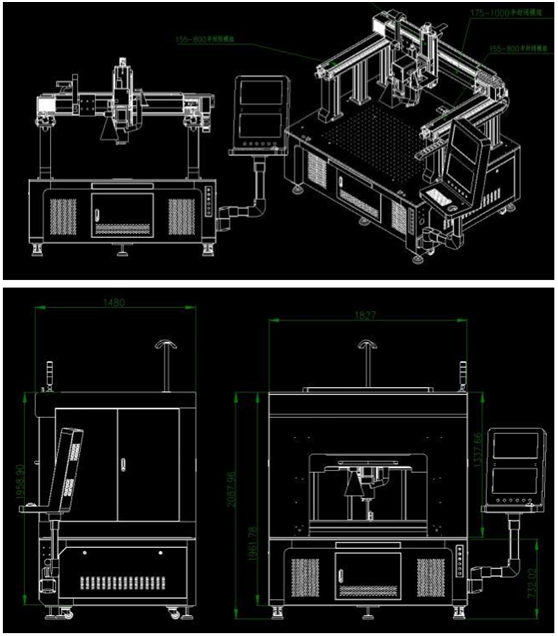

1.2 Equipment platform size and footprint
The external dimensions may change during the refinement process of the plan, and the actual product shall prevail!

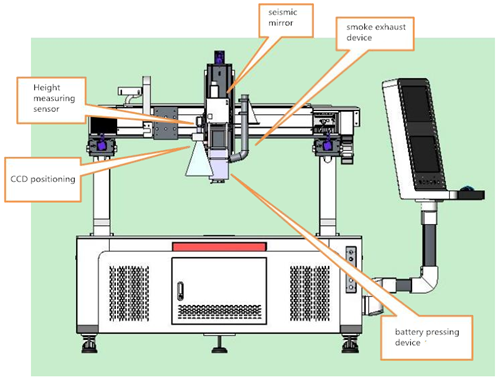

Remove the cover
XYZ working stroke: 1000-800-500, Z-axis servo drive with brake, stroke 500mm
The host and industrial computer are integrated into the workbench.

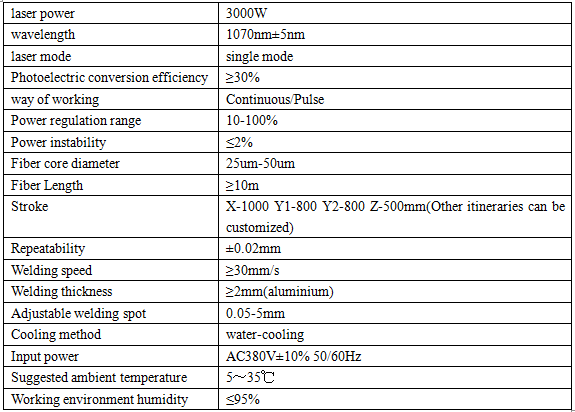

Ⅱ.Technical Parameter
