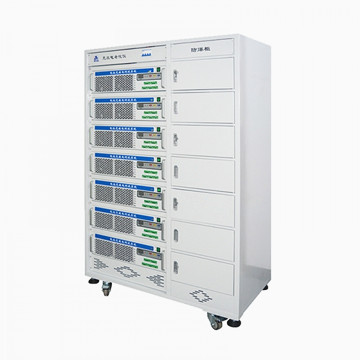

BK-BCDS100-10-20 100V50A Aging Machine
Pack Charge Discharge Aging Tester BCDS100-10-20
An integrated charging and discharging cycle testing system for lithium battery packs, including electric tools, solar energy storage, torsion bikes, scooters, electric bicycles, electric motorcycles, energy storage, etc.
Feature functions
Equipped with anti reverse connection and data drop protection functions
Fully meet the requirements of charging and discharging ports and charging and
discharging ports for battery packs
Each channel is independently designed for easy maintenance
The network can achieve accurate communication between multiple instruments over
long distances
Using SQL database to store data, facilitating querying and exporting test data
Test function
Charge discharge test, capacity test, cycle life test
Temperature characteristic test, overcharging/discharging test, battery cell consistency test
Software section
The upper computer software is an integral part of the charging and discharging testing system,
which can be installed on computers with operating systems such as Win2000/WinXP/Win7/Win10.
Based on the Windows operating interface, it uses SQL database to store test data, greatly facilitating
staff to query and export data online. The charging and discharging aging curve can be viewed by
battery barcode, time, and device number, and the curve can also be exported
