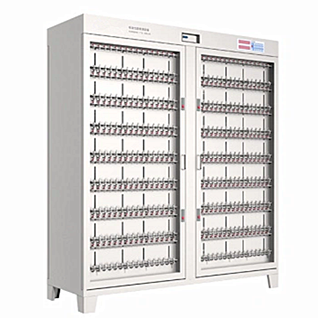

BK-3512L/6-5V6A BFGS Grading Formation Capacity Testing Equipment China

Product Description

BK-3512L/6-5V6A 18650 26650 21700 32650 32700 33140 Energy Regenerate BFGS Grading Formation Capacity Testing Equipment

This equipment is specialized in Lithium-Ion Cell Formation and a high-precision Lithium-Ion Battery Tester. It can precisely test voltage and capacity parameters of batteries, and also grade batteries. It has some incredible advantages such as: a 16-channel programmable constant-current and constant voltage control module with all channels being independent and stable with no bumps to the power supply for batteries; the software has excellent usability functions as it can set stable 32 steps and 256 cycles; furthermore, any charging mode, discharging mode and several protection/limitations functions; power-off protection and data breakpoint recovery with a graphical operating interface with data display reflecting real-time readings are convenient and user-friendly. It significantly improves the efficiency of testing and grading batteries.

Core Product Advantages

Stable Performance: An independent constant-current and constant-voltage source for each battery. Using field-effect transistors for each constant voltage source, and suitable for all battery types, the testing will be stable with no bumps to testing.

Multiple Usable Functions: The software supports charging and discharging modes, steps and cycles including multiple cycles, and produces complex testing schemes.

Simple Data Management: It has various data processing functions, and can output into different formats (file types) and can automatically calculate various data indicators for analysis.

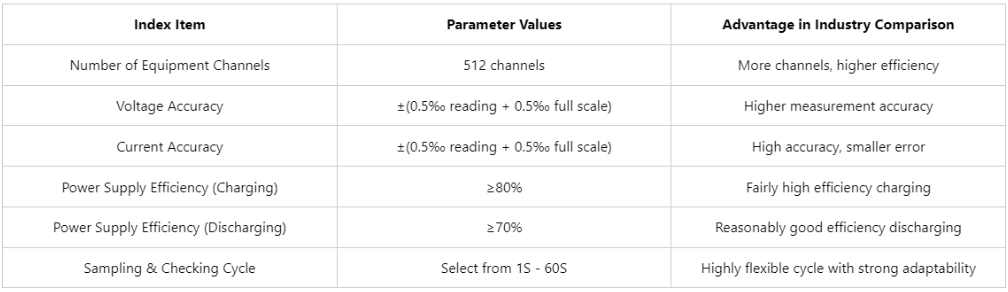

Technical Parameters

Application Scenarios for Equipment

Battery Manufacturing Company: In Battery Formation Equipment, it does formation and grading tests on lithium-ion batteries on a production line to ensure battery quality; will grade batteries according to the test data to improve product consistency.

Battery R&D (Research & Development): Taking advantage of its high-precision testing function as a lithium-ion battery tester to provide data support in developing new batteries, as well as develop battery performance improvements.

Battery Quality Inspection: Based on the rich protection functions and accurate test results will use the Equipment For Lithium-Ion Cell Formation model to do full inspections on submitted lithium-ion batteries to strictly control battery quality.
