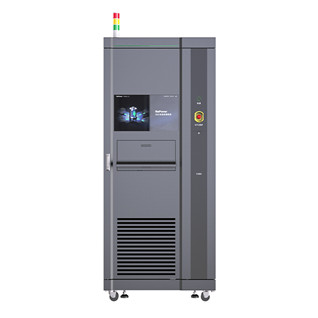

EOL Tester

BK-EOL-CEP01~04 / BK-EOL-CEM02~04 / RP-EOL-CEPro

BK-EOL-ULP01~04 / BK-EOL-ULM02~04 / RP-EOL-ULPro

Application

Designed for battery modules/PACKs for electric vehicles, buses and various energy storage systems, it integrates automated testing, data analysis and efficiency optimization functions, providing one-stop static testing solutions covering off-line inspection and quality control.

Testing Functions

Safety test Insulation resistance test DC/AC withstand voltage test, equipotential test

Electrical Performance Test Total Voltage, Total Internal Resistance, Voltage difference, NTC Accuracy, BMS Power Consumption

BMS communication and function test CAN/CANFD, RS485 communication, DBC analysis, UDS diagnostics, CAN terminal resistance

Signal Simulation Test PWM signal simulation, collision signal simulation, charging gun signal simulation high-voltage interlock simulation, insulation leakage simulation.
