Automatic Battery Pack Clustering AGV

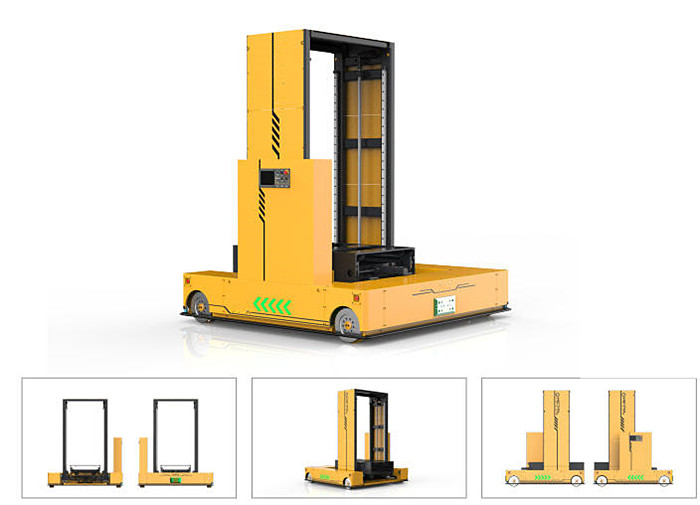

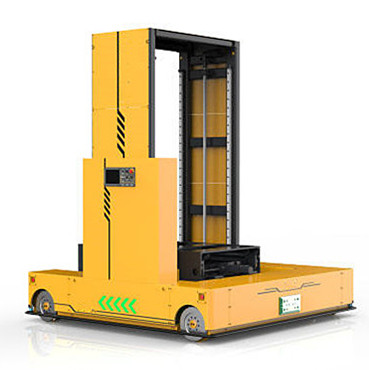

This is a heavy-duty, high-precision omnidirectional mobile robot specially designed for energy storage systems. It automatically transports heavy lithium battery packs and accurately loads them into designated positions of battery clusters inside energy storage cabinets or containers.

Replacing manual work and forklifts, the AGV features high operational efficiency, excellent anti-collision performance and stable running. It realizes fully unmanned loading procedures to avoid potential safety risks and product damage.

Key Parameters & Features

·         Load capacity: 800kg ~ 1500kg

·         Driving type: Mecanum wheel for omnidirectional movement

·         Positioning accuracy: ±5mm

·         Navigation: Integrated laser SLAM, QR code and 3D vision

·         Equipped with multi-dimensional posture adjustment and push-pull mechanism

·         Built-in force sensor for overload protection

·         Cycle time: ≤ 90 seconds per battery pack

Main Applications

Battery pack loading for energy storage production lines, on-site assembly of battery clusters in energy storage containers and prefabricated cabins.

Fully automatic BESS energy storage container battery cluster into cabinet rack AGV

▋FUNCTION DESCRIPTION

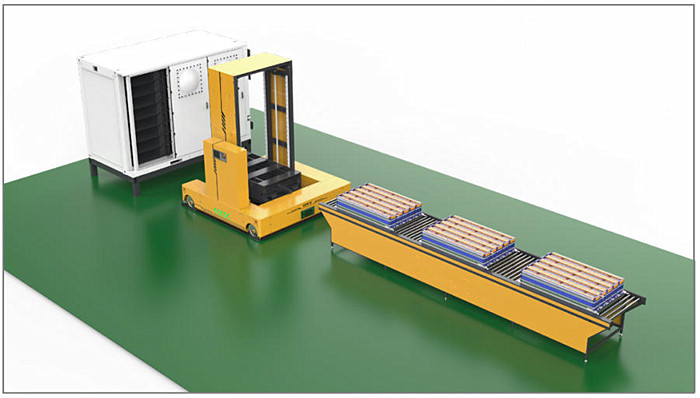

▋PROJECT APPLICATION DIAGRAM

Adopting Mecanum four-wheel drive, it can achieve omnidirectional movement in any direction within a two-dimensional plane, including straight, horizontal, oblique, arbitrary curve movement, and small turning radius turning;

Alarm function: The device has a low battery alarm function and is equipped with system fault diagnosis and battery display functions;

Status display function: The device status is displayed on the device control panel screen, and fault information can be displayed;

To achieve precise docking of battery PACK, the power lifting mechanism has functions such as left and right, front and rear angle adjustment, and push out pressure detection; This device is suitable for high-precision, fast-paced operations such as BESS energy storage containers.

▋PROJECT CASES

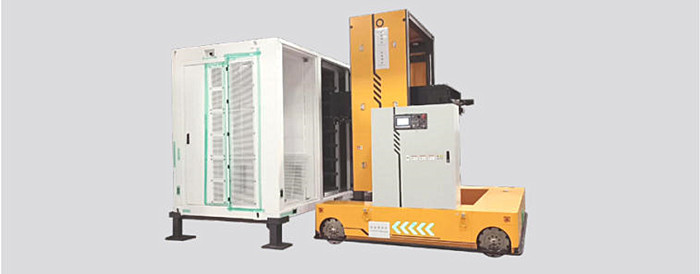

PACK battery cluster pick-up, docking, transportation, automatic insertion into internal racks and other applications

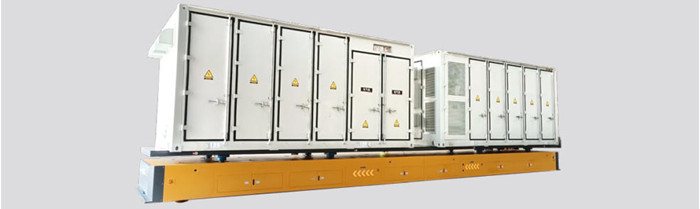

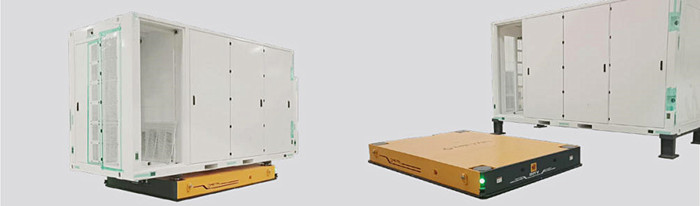

Hidden backpack heavy-duty AGV, multi station unmanned automatic transfer of energy storage cabinets/containers

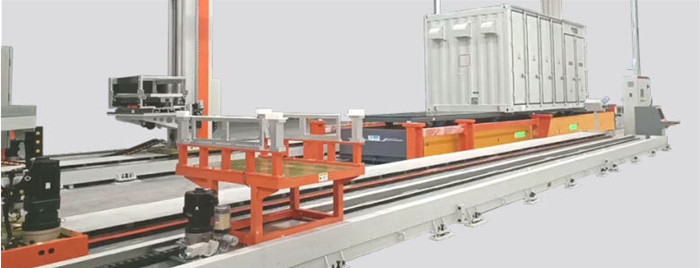

Unmanned and automated handling operation of 5-80 ton energy storage container assembly line

Docking and transportation of designated points for BESS container energy storage battery packs
