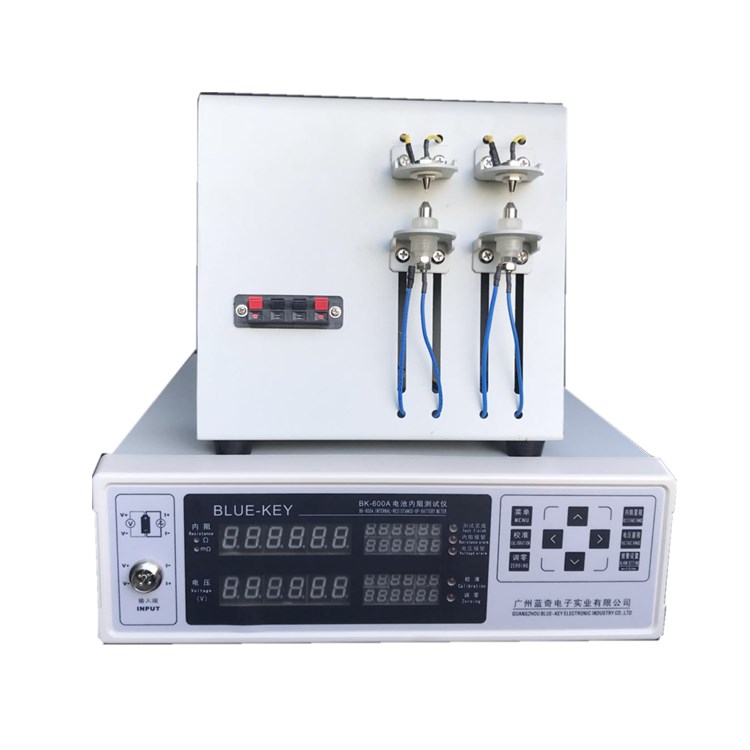

BK-600A Lithium Battery Internal Resistance & Voltage Tester

Equipment Name： BK-600A Internal Resistance of Battery Meter

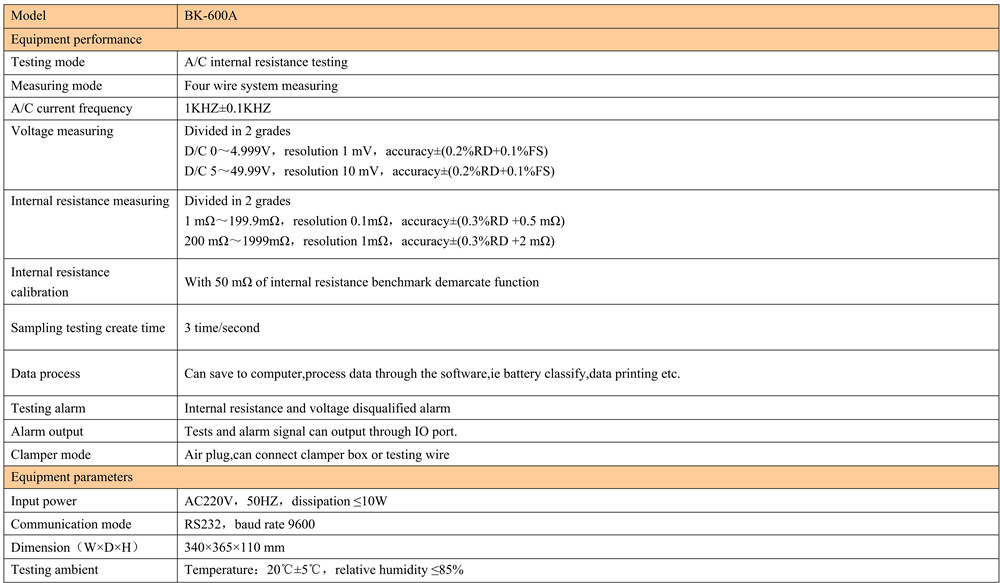

Model:BK-600A

Equipment performance

Testing mode       A/C internal resistance testing

Measuring mode  Four wire system measuring

A/C current frequency       1KHZ±0.1KHZ

Voltage measuring      Divided in 2 grades

D/C 0～4.999V，resolution 1 mV，accuracy±(0.2%RD+0.1%FS)

D/C 5～49.99V，resolution 10 mV，accuracy±(0.2%RD+0.1%FS)

Internal resistance measuring   Divided in 2 grades

1 mΩ～199.9mΩ，resolution 0.1mΩ，accuracy±(0.3%RD +0.5 mΩ)

200 mΩ～1999mΩ，resolution 1mΩ，accuracy±(0.3%RD +2 mΩ)

Internal resistance calibration    With 50 mΩ of internal resistance benchmark demarcate function

Sampling testing create time     3 time/second

Data process Can save to computer,process data through the software,ie battery classify,data printing etc.

Testing alarm Internal resistance and voltage disqualified alarm

Alarm output Tests and alarm signal can output through IO port.

Clamper mode     Air plug,can connect clamper box or testing wire

Equipment parameters

Input power  AC220V，50HZ，dissipation ≤10W

Communication mode RS232，baud rate 9600

Dimension（W×D×H）      340×365×110 mm

Testing ambient    Temperature：20℃±5℃，relative humidity ≤85%
