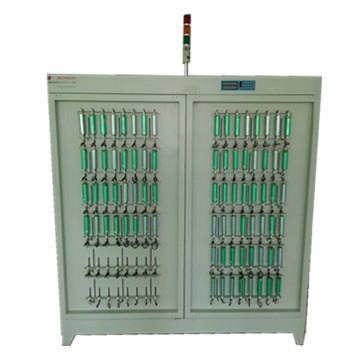

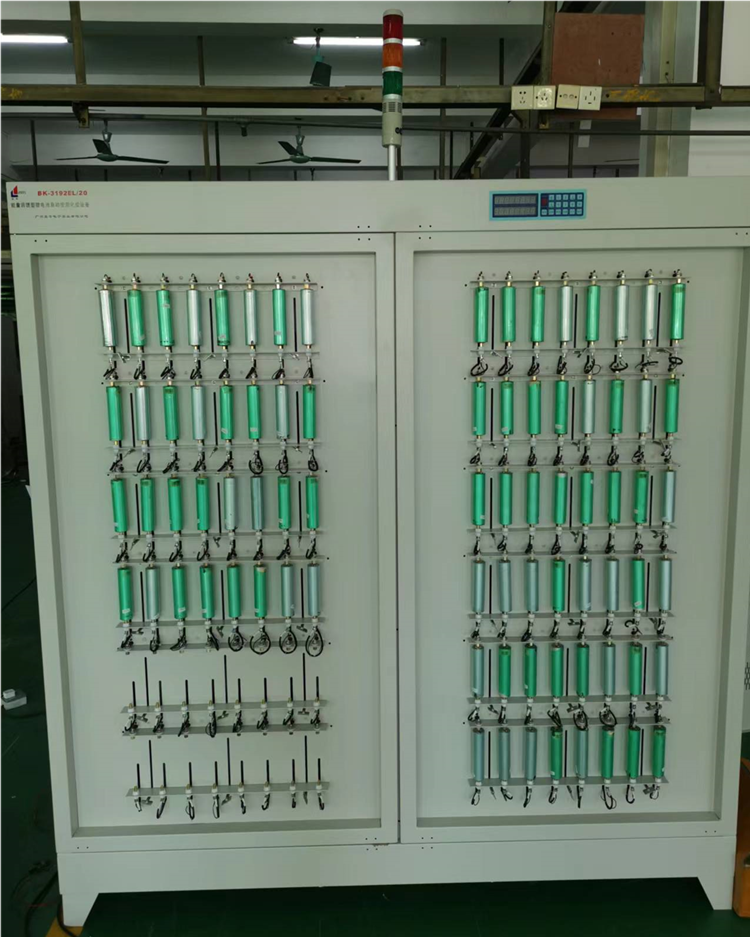

BK-3096L/60 5V60A Lithium Ion Battery Cylindrical Cell Cycle Performance Testing System
BK-3096L/60 5V60A Lithium Ion Battery Cylindrical Cell Cycle Performance Testing System

BK-3096L/60 5V60A Lithium Ion Battery Cylindrical Cell Cycle Performance Testing System

Product ID : BK-3096L/60
Product Attributes :

Model:BK-3096L/60

Battery:5V60A Lithium Cylindrical Cell

Application:For 5v60a cylindrical lithium battery cell cycle charge discharge lifetime performance testing.

Product Description

BK-3096L/60 5V60A Lithium Battery Cylindrical Cell Cycle Lifetime PerformanceTesting System

Model:BK-3096L/60



Battery:Lithium Ion Cylindrical Cell

.The main performance of the equipment

1.Specially designed and manufactured for performance testing and cycle life testing of rechargeable batteries, especially suitable for R&D departments.It can detect single-cell lithium ion and lithium polymer batteries.

2.It is designed and manufactured in strict accordance with national test standards, and can test all the electrical performance test items of rechargeable lithium-ion batteries in the standard.

3.The device has 8 constant current sources, each of which is completely independent and can be independently controlled. Each battery can be tested for different types and specifications of batteries. The charging and discharging process, charging and discharging current and constant voltage value of each circuit are individually controlled by the computer Programming settings.

4.With multiple test modes, constant power charging, constant power discharge and constant resistance discharge can be realized.

5.With AC internal resistance test function, it can detect the change of battery internal resistance during charging and discharging in real time.

6.Optional temperature test module can detect the change of battery temperature in real time during charging and discharging.

7.Optional external voltage test module, suitable for users to extend the test battery pressure or thickness and other parameters.

8.Modular design and manufacture, reliable and stable long-term operation, easy maintenance.

9.The four-wire method is adopted for measurement, which eliminates wiring and contact errors to the maximum extent and has high test accuracy.

10.Using automatic current feedback adjustment technology to overcome the non-linear factors of automatic current setting, and to ensure the current setting accuracy within the full range.

11.It adopts a 24-bit high-precision A/D converter, and each channel is equipped with an independent 16-bit D/A circuit, and the resolution of current and voltage sampling and adjustment is high.

12With data power failure protection function.

13.The upper computer can set up to 64 steps and 9999 cycles, and can display the cycle life curve.

14.Each host computer can connect 1-16 sets of single-chip systems.

15.Supporting software functions.

A.Realize functions such as centralized measurement and control of equipment, data processing and report making, and have multiple protection functions such as voltage abnormality protection and current abnormality protection.

B.Provide powerful data processing functions, provide a variety of curve modes, such as voltage-time, current-time, internal resistance-time and its superimposed curve, characteristic value, cycle graph, etc., and provide flexible programming options for easy use.

C.Data export function, can export test data to Excel, Word, Access or text file;

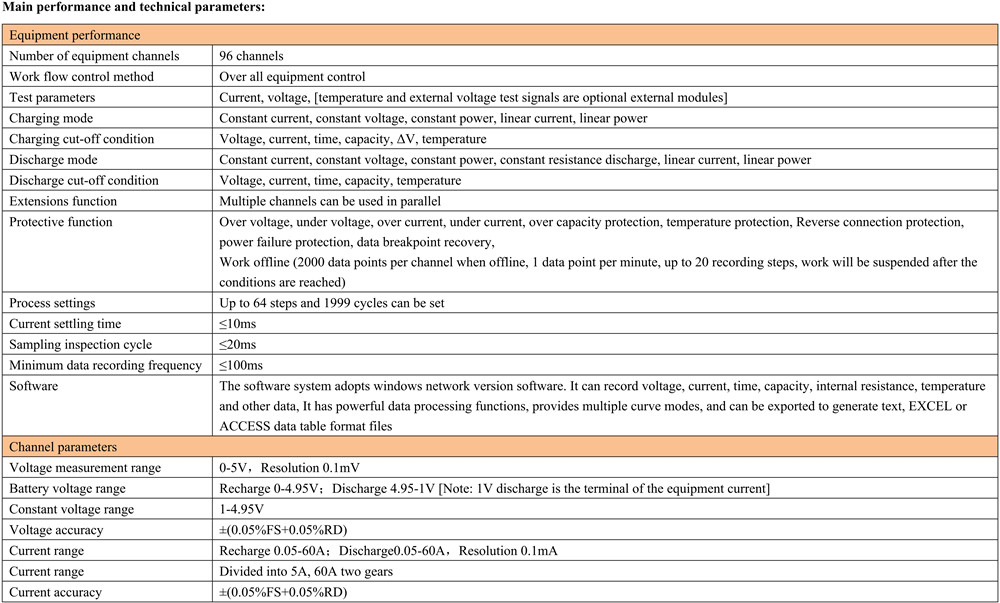

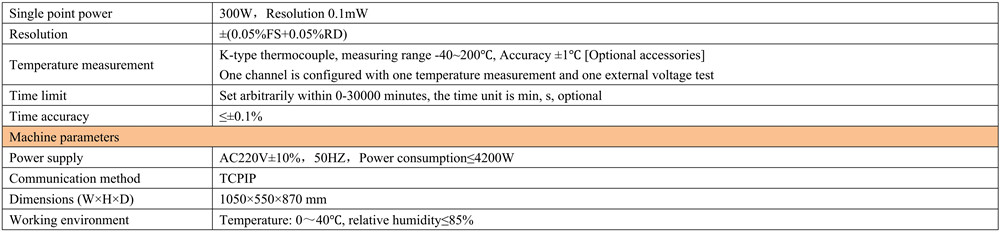

.Main technical parameters

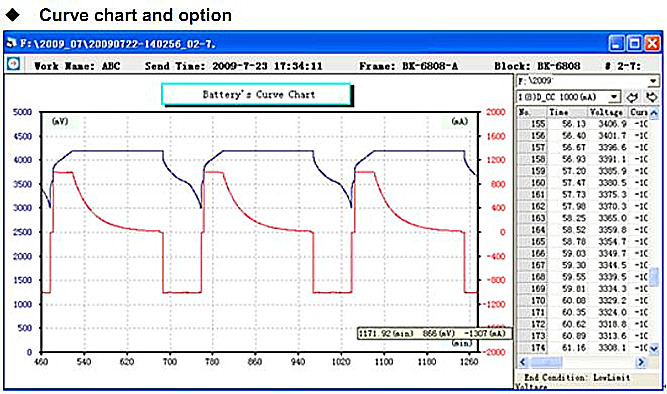

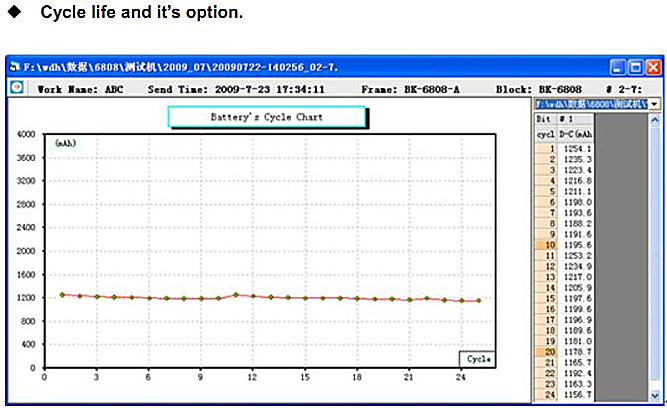

. Screenshot of battery testing software interface and curve:

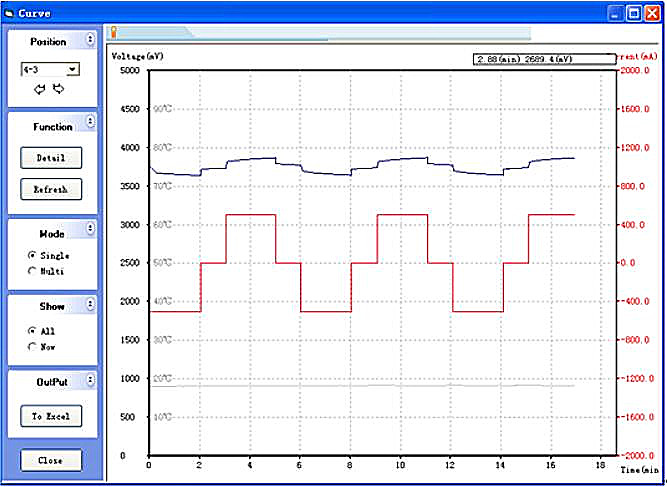

Software Curve Display
