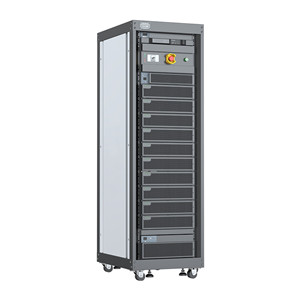

BK-HRCDS-5V300A-HV LFP NCM Lithium Battery Cell Cycle Tester

BK-HRCDS-5V300A-HV

Voltage Range 5V

Current Range 300A

Accuracy ± 0.02% F.S

Current response time ＜5ms (0%F.S～100%F.S)

Current switching time 10ms (-90%~90% F.S)

Equipment size 600*850*1030mm / 600*800*1980mm

Distributed 5V Battery Cell Test System

BK-HRCDS-5V300A-HV

Application

Bluekey distributed battery cell testing equipment is a next-generation feedback-based testing system based on a high-voltage busbar solution and centered around energy management strategies. Designed specifically for lithium-ion battery cells in the new energy vehicle and energy storage sectors, it is suitable for R&D verification, production quality inspection, and performance optimization. It accurately covers core testing requirements such as battery cycle life testing, charge and discharge efficiency analysis, and multi-scenario operating condition simulation.

Testing Functions

§  Cycle Life Test

§  Capacity Test

§  Charge and Discharge Test

§  Charge and Discharg Efficiency Test

§  Charge Retention Capability

§  High-speed Pulse Test

§  Working Condition Test

§  DCIR Test
