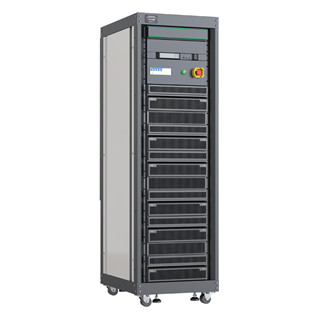

BK-HRCDS-6V lithium battery cell cycle charge discharge performance tester China

BK-HRCDS-6V

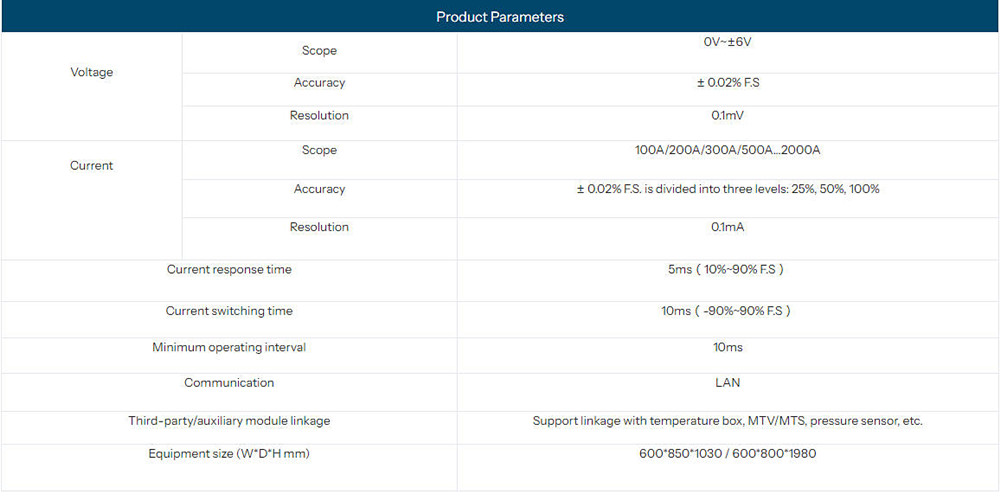

Voltage Range 0V~±6V

Current Range 100A/200A/300A/500A…2000A

Accuracy ± 0.02% F.S

Current response time 5ms (10%~90% F.S)

Current switching time 10ms (-90%~90% F.S)

Equipment size 600*850*1030mm / 600*800*1980mm

Battery Cell Tester

BK-HRCDS-6V    100A/200A/300A/500A…2000A

Application

Bluekey 6V series power battery test system can test various power batteries (lithium batteries , lead-acid batteries , Nickel-cadmium battery , NiMH batteries) for electrical performance testing , which can meet the real road condition simulation test requirements of the battery to the greatest extent , and accurately sample various battery parameters in real time, store, analyze, and give early warning to provide reliable data reference for battery research, development and production.

Testing Functions

• Cycle Life Test
• Capacity Test
• Charge and Discharge Test
• Temperature Characteristics Test
• Charge Retention Capability
• Dynamic and Static SOC Test
• High-speed Pulse Test
• DCIR Test
