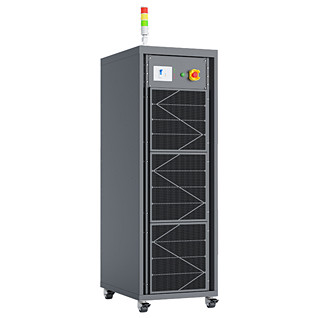

BK-HRCDS-5V600A-HV 5V600A Lithium Battery Cycle Lifetime Tester China

BK-HRCDS-5V600A-HV

share

Voltage Range 5V

Current Range 600A

Accuracy ± 0.02% F.S

Current response time ＜3ms (0%F.S～100%F.S)

Current switching time ＜6ms (-100%F.S～100%F.S)

Equipment size 810*850*1980mm

Application

Bluekey distributed battery cell testing equipment is a next-generation feedback-based testing system based on a high-voltage busbar solution and centered around energy management strategies. Designed specifically for lithium-ion battery cells in the new energy vehicle and energy storage sectors, it is suitable for R&D verification, production quality inspection, and performance optimization. It accurately covers core testing requirements such as battery cycle life testing, charge and discharge efficiency analysis, and multi-scenario operating condition simulation.

Testing Functions

• Cycle Life Test
• Capacity Test
• Charge and Discharge Test
• Charge and Discharg Efficiency Test
• Charge Retention Capability
• High-speed Pulse Test
• Working Condition Test
• DCIR Test
