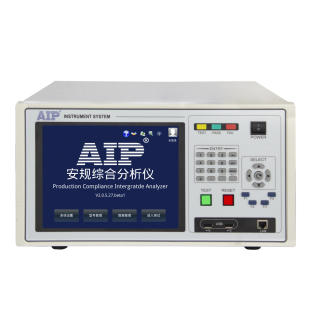

AIP Modular Safety Comprehensive Analyzer AIP6882D

Product Overview

The world's first modular safety comprehensive analyzer, realizing information-based data collection, storage, analysis and transmission. It serves as the optimal solution for the testing industry under the intelligent connected network.

●10-inch full-color touch screen with concise and elegant appearance, built-in touch keyboard supporting multiple input methods;

●Dedicated AIP safety operation software developed via QT programming under Linux operating system, fully meeting industry testing requirements;

●Supports collection, storage, analysis and transmission of test data, capable of interconnection with MES and other information systems;

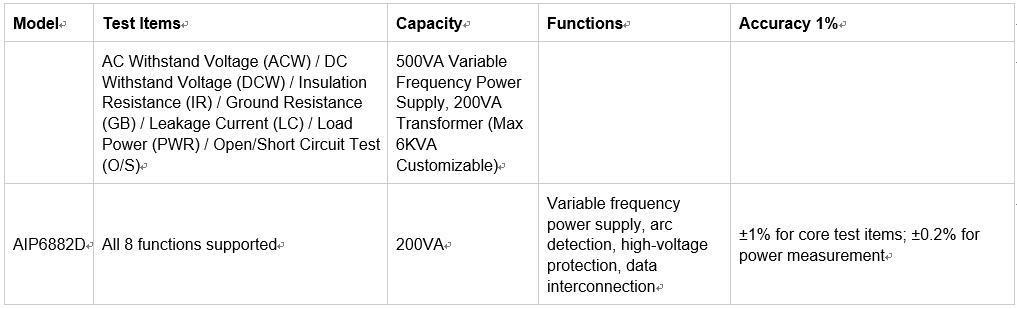

●Eight-in-one functions: AC Withstand Voltage, DC Withstand Voltage, Ground Resistance, Insulation Resistance, Leakage Current, Low-Voltage Startup, Power Test, Open/Short Circuit Test;

●Accuracy of major test items: 1%, power test accuracy: 0.2%;

●Diverse communication modes: WIFI, Ethernet, USB, RS232, RS485, CAN

Product Features

Modular Design | Parallel Testing | Calibration Module | Rapid Discharge | Remote Upgrade | Fault Self-Diagnosis | Barcode Scanning | WIFI | Data Management | High-Voltage Protection | Arc Detection | Built-in Power Supply

●Modular Design: Board-type design for each functional module, supporting customized multi-function selection, establishing an innovative sales and service system.

●Parallel Testing: Simultaneous testing of withstand voltage/insulation and ground resistance, greatly shortening overall test time and improving testing efficiency.

●Fault Self-Diagnosis: Displays root causes of equipment faults; combined with remote upgrade and modular design to rapidly resolve equipment issues.

●Remote Upgrade: Remotely update software to the latest version, solving problems encountered during software operation and fulfilling customized update demands.

●Rapid Discharge: Patented rapid discharge technology enables complete discharge of DUT (Device Under Test) within 50ms.

●GFI High-Voltage Protection: Real-time loop monitoring; automatically cuts off high-voltage output if personnel contact the high-voltage circuit to eliminate electric shock hazards and protect operator safety.

●WIFI Function: Connect to wireless networks and mobile hotspots for network data transmission, remote diagnosis and remote upgrade.

●Built-in Power Supply: Built-in variable frequency power supply that outputs voltage and frequency required for testing in real time; standard built-in power ≤6KVA, higher power available upon customization.

●Arc Detection: Identifies defective short-circuit products by detecting abnormal current loops of the DUT.

●Barcode Scanning: Support barcode-triggered testing, barcode-based test group switching, and linkage between barcodes and test data to facilitate data management and analysis.

●Data Management: Real-time display of statistical data in chart format for easy data analysis and management; compatible with databases and docking with MES and other information systems.

AC Withstand Voltage

Rated Output: 5KV/100mA

Output Voltage Range: 100~5000V

Voltage Accuracy: ±(1%×Set Value + 2 Digits)

Voltage Resolution: 1V

Output Frequency: 50/60Hz

Frequency Accuracy: ±0.1Hz

Upper Current Limit: 0.00~100.00mA

Lower Current Limit: 0.000~9.999mA

Current Measurement Range: 0.00~100.0mA

Current Resolution: 0.001/0.01mA

Current Measurement Accuracy: ±(1%×Reading + 5 Digits)

Ramp-Up Time: 0~999.9s

Ramp-Down Time: 0.1~999.9s

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

Arc Detection Level: 0~9

Current Compensation Range: 0.000~20.00mA

DC Withstand Voltage

Rated Output: 6KV/10mA

Output Voltage Range: 200~6000V

Voltage Accuracy: ±(1%×Set Value + 2V)

Output Ripple: <2%

Upper Current Limit: 0.00~10.00mA

Lower Current Limit: 0.00~9.999mA

AC Current Measurement Range: 0.00~10.0mA

Current Resolution: 0.001/0.01mA

Current Measurement Accuracy: ±(1%×Reading + 5 Digits)

Ramp-Up Time: 0~999.9s

Ramp-Down Time: 0.1~999.9s

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

Arc Detection Level: 0~9

Current Compensation Range: 0.000~5.000mA

Discharge Time: 100ms

Insulation Resistance

Rated Output: 2500V/50GΩ

Output Voltage Range: 200~2500V

Voltage Resolution: 1V

Voltage Accuracy & Ripple: ±(1%×Reading + 2V), Ripple ≤2%

Resistance Measurement Resolution: 0.001MΩ, 0.01MΩ, 0.1MΩ, 1MΩ, 0.01GΩ

Measurement Accuracy:

1）1.000MΩ~999.9MΩ (Output 200-500V): ±(7%×Reading + 3 Digits)

2）1.000MΩ~999.9MΩ (Output 501-2500V): ±(5%×Reading + 3 Digits)

3）1.00GΩ~10.00GΩ (Output 501-2500V): ±(7%×Reading + 3 Digits)

4）10.00GΩ~50.00GΩ (Output 1000-2500V): ±(15%×Reading + 3 Digits)

Ramp-Up Time: 0~999.9s

Ramp-Down Time: 0.1~999.9s

Test Time: 0, 0.3~999.9s

Discharge Time: <100ms

Time Resolution: 0.1s

Ground Resistance

Rated Output: 32A/600mΩ (Max 64A Customizable)

Output Current Range: 1.00~32.00A (Max 64A)

Current Resolution: 0.01A

Current Accuracy: ±(1%×Set Value + 3 Digits)

Current Fluctuation: ≤0.4%×Set Value per minute

Output AC Voltage: 3.00~8.00V

Voltage Resolution: 0.1V

Output Frequency: 50Hz/60Hz

Frequency Accuracy: ±0.1Hz

Upper & Lower Resistance Limit: 0.1~600mΩ

Resistance Measurement Range:

●0.1~600mΩ (1.00~10.00A)

●0.1~(6400/Set Current) mΩ (10.10~64.00A)

Resistance Resolution: 0.1/1mΩ

Resistance Measurement Accuracy: ±(1%×Reading + 3 Digits)

Voltage Measurement Range: 0.00~6.40V AC

Voltage Resolution: 0.01V

Voltage Accuracy: ±(1%×Reading + 3 Digits)

Resistance Compensation: 0~100mΩ

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

Leakage Current

Standard Test Network: IEC60990, GB/T12113 Figure 4 as primary network

Voltage Measurement Range: 0.0~300.0V

Voltage Resolution: 0.1V

Voltage Accuracy: ±(0.4%×Set Value + 0.1%×Range)

Overcurrent Protection: RMS current 25A (<3s); Peak current 70A (<10ms)

Upper & Lower Current Limit: 0.000~20.00mA

Current Resolution: 0.001mA

Current Measurement Accuracy:

●DC & 15Hz ≤ f ≤ 100kHz: ±(2%×Reading + 0.02mA)

●101kHz ≤ f ≤ 1000kHz (>10μA): ±5%×Reading

Contact Current Compensation: 0.000~1.000mA

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

Load Power

Upper & Lower Power Limit: 0.0~6000W

Power Measurement Range: 0.0~999.9W, 1000~6000W

Power Resolution: 0.1W, 1W

Power Measurement Accuracy:

●PF>0.9: ±(0.1%×Reading + 0.1%×Range)

●PF≤0.9: ±(0.4%×Reading + 0.1%×Range)

Voltage Measurement Range: 0.0~300.0V

Voltage Resolution: 0.1V

Voltage Accuracy: ±(0.1%×Reading + 0.1%×Range)

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

Low-Voltage Startup

Upper & Lower Current Limit: 0.00~20.00A

Current Measurement Range: 0.000~9.999A, 10.00~20.00A

Current Resolution: 0.001A/0.01A

Current Accuracy: ±(0.1%×Reading + 0.1%×Range)

Voltage Measurement Range: 0.0~300.0V

Voltage Resolution: 0.1V

Voltage Accuracy: ±(0.1%×Reading + 0.1%×Range)

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

Open/Short Circuit Test

Test Voltage: 10VDC

Resistance Test Range: 2.0~999.9Ω

Resistance Resolution: 0.1Ω

Resistance Measurement Accuracy: ±(5%×Reading + 5 Digits)

Test Time: 0, 0.3~999.9s

Time Resolution: 0.1s

Time Accuracy: ±(0.2%×Set Value + 1 Digit)

General Specifications

Communication Interfaces: WIFI, Ethernet, USB, RS232, RS485, CAN

Dimensions (W×H×D): 435×220×520 mm

Standard Accessories: Test fixture, test clamp, user manual
