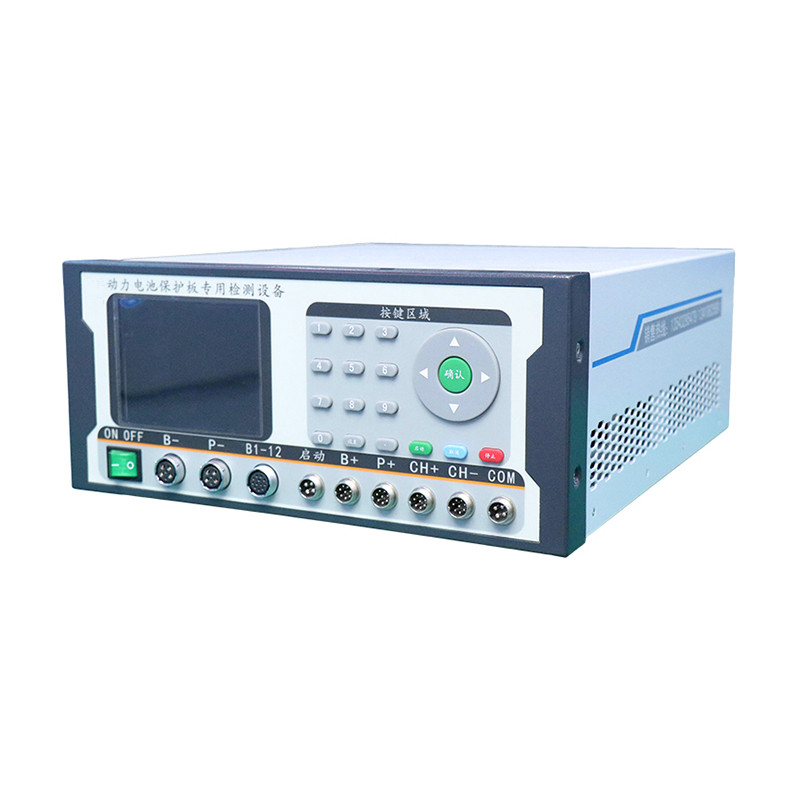

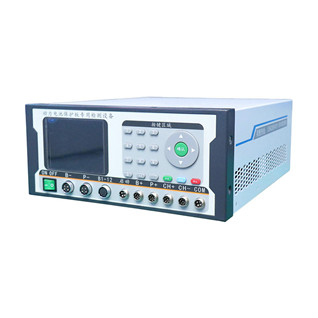

PBTS(M)-12S120-Lithium Battery Protection Board (BMS) Tester

Scope of application

Applied to lithium battery protection plate safety testing, testing the protection plate functional indicators are within reasonable parameters, providing staff with a set of testing standards, improving production efficiency, and facilitate quality control. Compatible with the common types of protection plate on the market: positive with the port (split port), negative with the port (split port), positive charging protection negative discharge protection, and so on. The product is mainly used in production testing, incoming material testing, quality control, R & D testing, etc.

Equipment environmental requirements and technical parameters

Power supply: AC voltage 220V ±10% , frequency: 50Hz ±10%;Ambient temperature: 10 ~ 45 ℃;The environment without strong vibration, no corrosive gases and flammable and explosive gases exist.

Mode Introduction

Rapid test: according to the design parameters of the protection board, the upper limit / lower limit of the output design parameters of the device for rapid testing, to facilitate the protection board manufacturers and power battery manufacturers large-scale rapid testing and shipment, applicable to a variety of hardware programs and part of the software program protection board test.

Accurate testing: can accurately detect the precise value of the functional parameters of the power battery protection board (error of±5mv), to facilitate the debugging and development of samples, to provide R & D personnel with a set of standards for rapid testing.

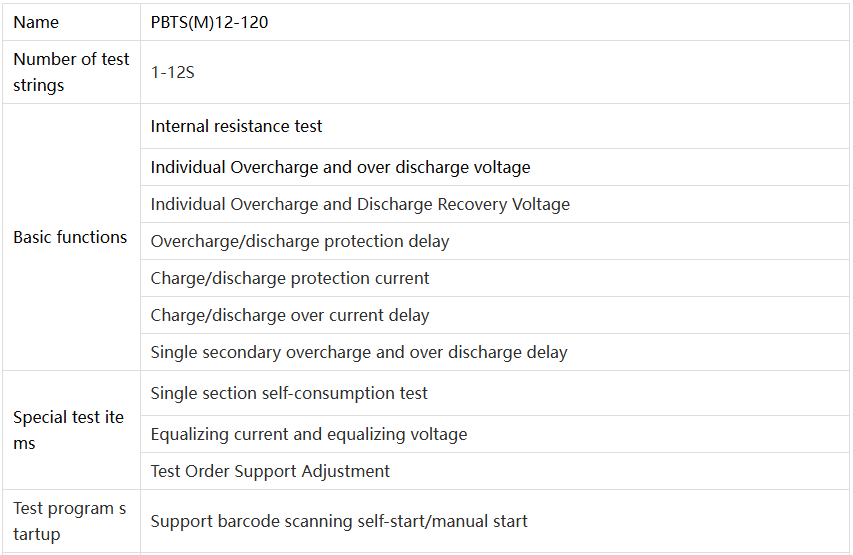

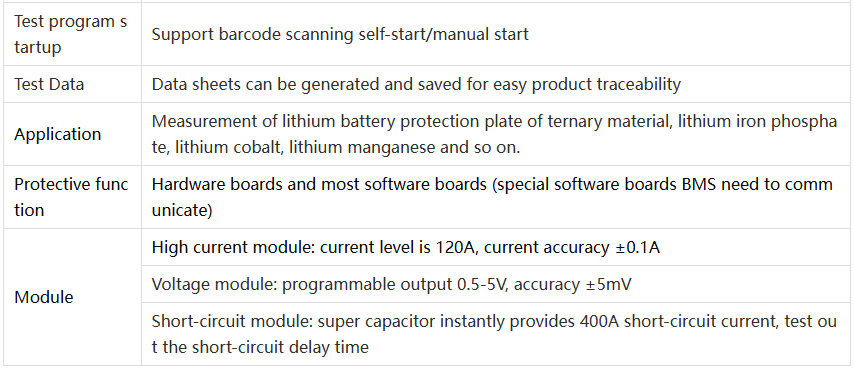

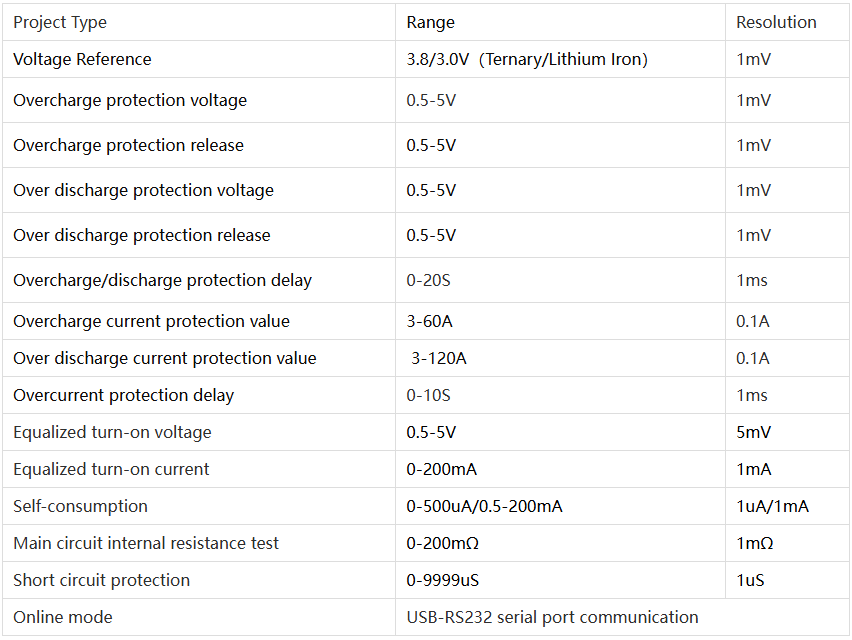

Technical Parameters

Software component

Upper computer software: running on the computer, coordinating and controlling the entire test system, completing data acquisition and collation, generating test reports, the test software system has independent intellectual property rights, the software system is fully functional, according to the user-defined specifications to determine the test results pass/fail; the test system in the form of Excel files to locally save all the test results information.
